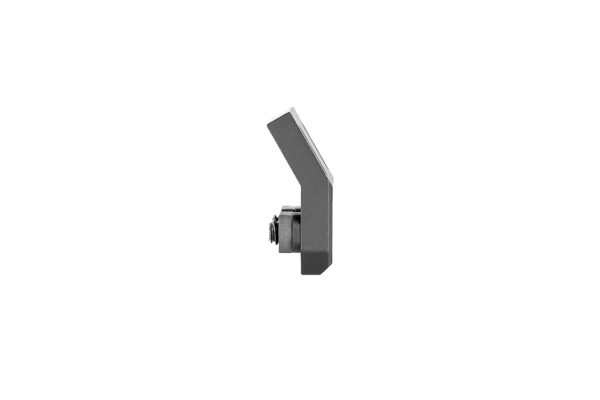

Arisaka Defense Offset Scout Mount Galil Ace Gen II

The Patent Pending Offset Scout Mount is designed specifically for the Streamlight Protac Rail Mount 1, 2 and HL-X along with Surefire Scout Light M600 and M300, the Arisaka 300 and 600 Series Lights, Modlite OKW and PLH. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards. The Offset Scout Mount is very low profile at less than 0.20″ thick.

When used on the side mounting surfaces of the Galil ACE Gen II M-Lok handguards, the Offset Scout Mount places the light at a 30 degree angle to properly match the handguard, and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions.

The Offset Scout Mount also provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories. Three positions are provided, spanning approximately 0.240″.

Compatible with the Modlite PLH and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X, and Arisaka 300 and 600 Series.

Length: 1.265″

Weight: 0.4 oz

CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized

Includes necessary screws to attach light body to mount

Requires an IP25/T25 and IP20/T20 Torx driver for installation (not included)

Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243

Made in the USA.
